?KR Electronics低通濾波器SMA

正式發布的時間：2024-01-11 17:14:11 查詢：981

低通濾波器是種采用頻點底于選定擇頻點卡死的衛星信息并衰減頻點高過頻點卡死的衛星信息的濾波器。低通濾波器目的于不同的產業方面，舉例子電子無線電路原理、參數趨于穩定、吸聲材料閉塞、影像大概等。

SMA銜接器應運于高至26.5GHz的的頻率使用范圍頻射微波加熱應運。軟件應用方向具有就是聯通、資料電腦網絡、有線通信技術和公測量測實驗室設備等。SMA聯系器有著頻帶寬度寬、穩定性良好、高牢靠性、安全使用平均使用壽命長的特性。

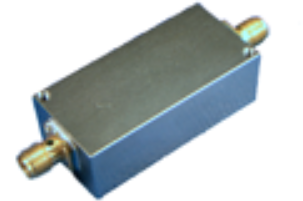

KR Electronics.png

Part Number	Cutoff Frequency	Attenuation at Cutoff	Stopband Frequency	Stopband Attenuation	Case Style	Notes/Special Features
2321-SMA	300 Hz	3	1 KHz	40	SMA	Active Filter
2484	20 KHz	1.5	21 KHz	20	SMA
3201-20-SMA	20 KHz	3	32 KHz	52	SMA
3282-SMA	45 KHz	1.5	50 KHz	30	SMA	50 Ohm
2826	45 KHz	1.5	50 KHz	30	SMA	500 Ohm
3479	50 KHz	3	100 KHz	36	SMA	Low Impedance Source/High Impedance Load
2928-SMA	100 KHz	1	140 KHz	45	SMA
2827-130	130 KHz	1.5	149 KHz	30	SMA
2275-1.5	150 KHz	3	240 KHz	50	SMA
2827	350 KHz	1.5	400 KHz	30	SMA
3105-535	535 KHz	3	560 KHz	80	SMA
3271-SMA	1 MHz	0.5	1.4 MHz	45	SMA	Stopband to >6 GHz
2391-1.75-75-SMA	1.75 MHz	0.25	2.42 MHz	45	SMA	75 Ohm Group Delay Equalized
3151	7 MHz	1	15 MHz	50	SMA
2490	7 MHz	1	12 MHz	30	SMA	Group Delay Equalized
2832-SMA	7.5 MHz	3	10 MHz	40	SMA
3400-SMA	7.5 MHz	3	10 MHz	40	SMA
2969-SMA	10 MHz	1	13.125 MHz	84	SMA
2884-SMA	11 MHz	3	12 MHz	50	SMA
2378-50-SMA	15 MHz	0.2	22.275 MHz	40	SMA	50 Ohm Group Delay Equalized
2297-7-SMA	16 MHz	0.5	22.4 MHz	45	SMA
3020	20 MHz	3	22.5 MHz	25	SMA
2586-20	20 MHz	0.5	40 MHz	55	SMA
2937	20 MHz	3	44.1 MHz	45	SMA
3039	25.5 MHz	1	35 MHz	49	SMA
2933-SMA	30 MHz	3	36 MHz	65	SMA
3018-2-SMA	30 MHz	1	37.5 MHz	50	SMA	Group Delay Equalized
2586-30	30 MHz	0.5	60 MHz	55	SMA
3254-32-LP-SMA	32 MHz	1.5	50 MHz	60	SMA
2489	33 MHz	1	45 MHz	30	SMA	Group Delay Equalized
2478	34 MHz	0.25	46 MHz	40	SMA	Group Delay Equalized
2454	37 MHz	0.5	52.2 MHz	60	SMA	Group Delay Equalized Sin(x)/x
2586-40	40 MHz	0.5	80 MHz	55	SMA
2789	40 MHz	1.5	52.5 MHz	84	SMA
2805	45 MHz	1	70 MHz	30	SMA
2586-50	50 MHz	0.5	100 MHz	55	SMA
2515	50 MHz	0.25	73.6 MHz	60	SMA	Group Delay Equzlized
3380-SMA	60 MHz	3	67.5 MHz	40	SMA
2806	85 MHz	2	108 MHz	30	SMA
2513	88 MHz	1	132 MHz	40	SMA	Group Delay Equalized
3065	88 MHz	1	118 MHz	40	SMA
2692	91 MHz	3	100 MHz	20	SMA
3119	100 MHz	3	109.9 MHz	20	SMA
3234-SMA	105 MHz	0.5	155 MHz	60	SMA	Group Delay Equalized
2886	110 MHz	1	180 MHz	40	SMA
2923-SMA	110 MHz	2.5	117.5 MHz	40	SMA
3405-SMA	112 MHz	1.5	118 MHz	10	SMA
3230-SMA	112.5 MHz	2	125 MHz	45	SMA	Group Delay Equalized
2750-SMA	165 MHz	0.75	225 MHz	50	SMA	Group Delay Equalized
3258-SMA	165 MHz	3	175 MHz	25	SMA
2635-SMA	167 MHz	1	226 MHz	50	SMA
2812	174 MHz	2	225 MHz	50	SMA
3101	180 MHz	3	200 MHz	40	SMA	Group Delay Equalized
3070-SMA	200 MHz	3	250 MHz	40	SMA	Group Delay Equalized
3253-201-LP-SMA	201 MHz	1.5	402 MHz	50	SMA
2961-SMA	300 MHz	1	500 MHz	40	SMA	Group Delay Equalized
3064	300 MHz	1	600 MHz	55	SMA
3188-SMA	351.4 MHz	3	390 MHz	60	SMA
2433-400-SMA	400 MHz	3	522 MHz	54	SMA
3216-SMA	400 MHz	1	450 MHz	50	SMA
3007-SMA	430 MHz	0.5	549 MHz	20	SMA	Group Delay Equalized Sin(x)/x
2914	450 MHz	3	500 MHz	35	SMA
2968-SMA	475 MHz	0.5	800 MHz	55	SMA	Group Delay Equalized Sin(x)/x
2433-500-SMA	500 MHz	3	652.5 MHz	54	SMA
3153-SMA	615 MHz	3	800 MHz	60	SMA
3255-805-LP-SMA	805 MHz	1.5	1600 MHz	50	SMA
3008-SMA	1250 MHz	1.25	1600 MHz	40	SMA
3293-SMA	1700 MHz	3	2500 MHz	40	SMA
3481-SMA	2100 MHz	3	2900 MHz	40	SMA
3281-SMA	2750 MHz	1	3900 MHz	40	SMA
