LL00110-2

0.01-1.0

0.5

1.3:1

-6

-5

2A

LS01012

0.1-12.0

1.7

1.6:1

+6

+14

B

LS01018

0.1-18.0

2.2

2.0:1

+6

+14

B

LP05018

0.5-18.0

1.8

2.0:1

+9

+20

B

LS05018

0.5-18.0

2.0

2.0:1

+6

+14

B

LS0520

0.5-2.0

0.6

1.4:1

+6

+14

B

LP1020

1.0-2.0

0.4

1.3:1

+9

+19

B

LP1018

1.0-18.0

1.8

2.0:1

+9

+20

B

LP18-40A

18.0-40.0

4.0

2.0:1

+9

+19

OB-1

LL2018-2

2.0-18.0

4.0

2.0:1

-5

-5

1D

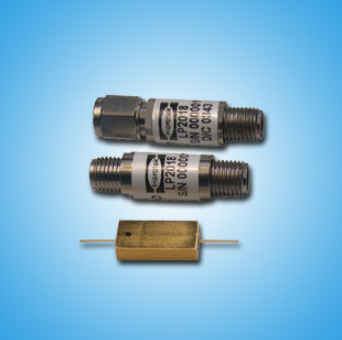

LP2018

2.0-18.0

1.8

2.0:1

+9

+20

B

LP2040

2.0-4.0

0.5

1.4:1

+9

+19

B

LS2040

2.0-4.0

0.7

1.4:1

+6

+14

B

LP26-40A

26.0-40.0

4.0

2.0:1

+9

+19

OB=1

LP4080

4.0-8.0

1.2

1.5:1

+9

+19

B

LS4080

4.0-8.0

1.3

1.5:1

+6

+13

B

LP7012

7.0-12.0

1.5

1.6:1

+9

+19

B

LS7012

7.0-12.0

1.6

1.6:1

+6

+13

B

LP8018

8.0-18.0

1.8

2.0:1

+9

+19

B

LS8018

8.0-18.0

2.0

2.0:1

+6

+13

B

Model

Freq Range

(GHz)

Max Insertion Loss(dB)

Max VSWR

Typ Lim Threshold

(dBm)

Typ Leakage @1W CW input(dBm)

Typ Leakage @25W CW input(dBm)

Typ Leakage @100W CW input(dBm)

Outline

LS0812PP100A

8.0-12.0

2.0

2.0：1

4

+6

+10

+13

E
